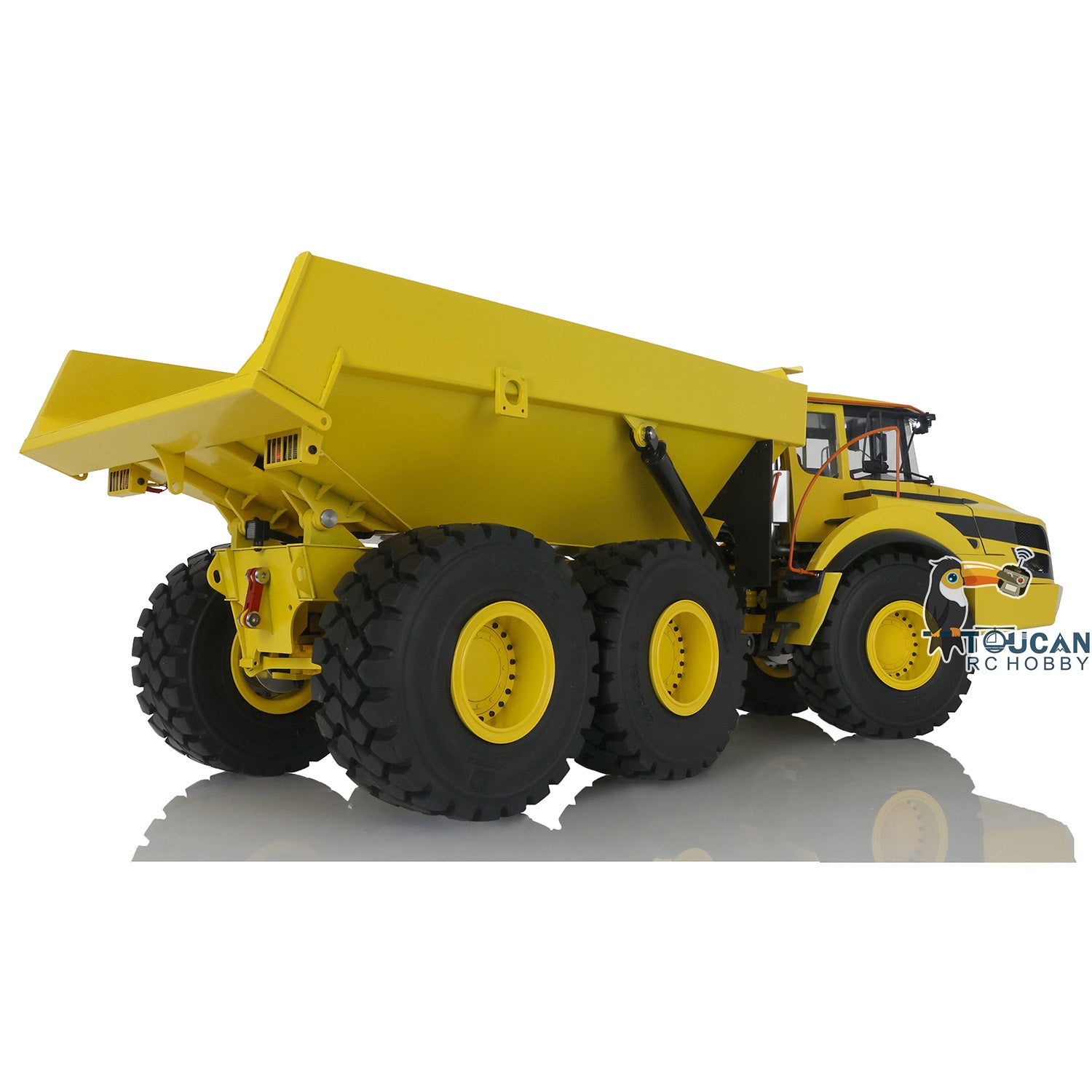

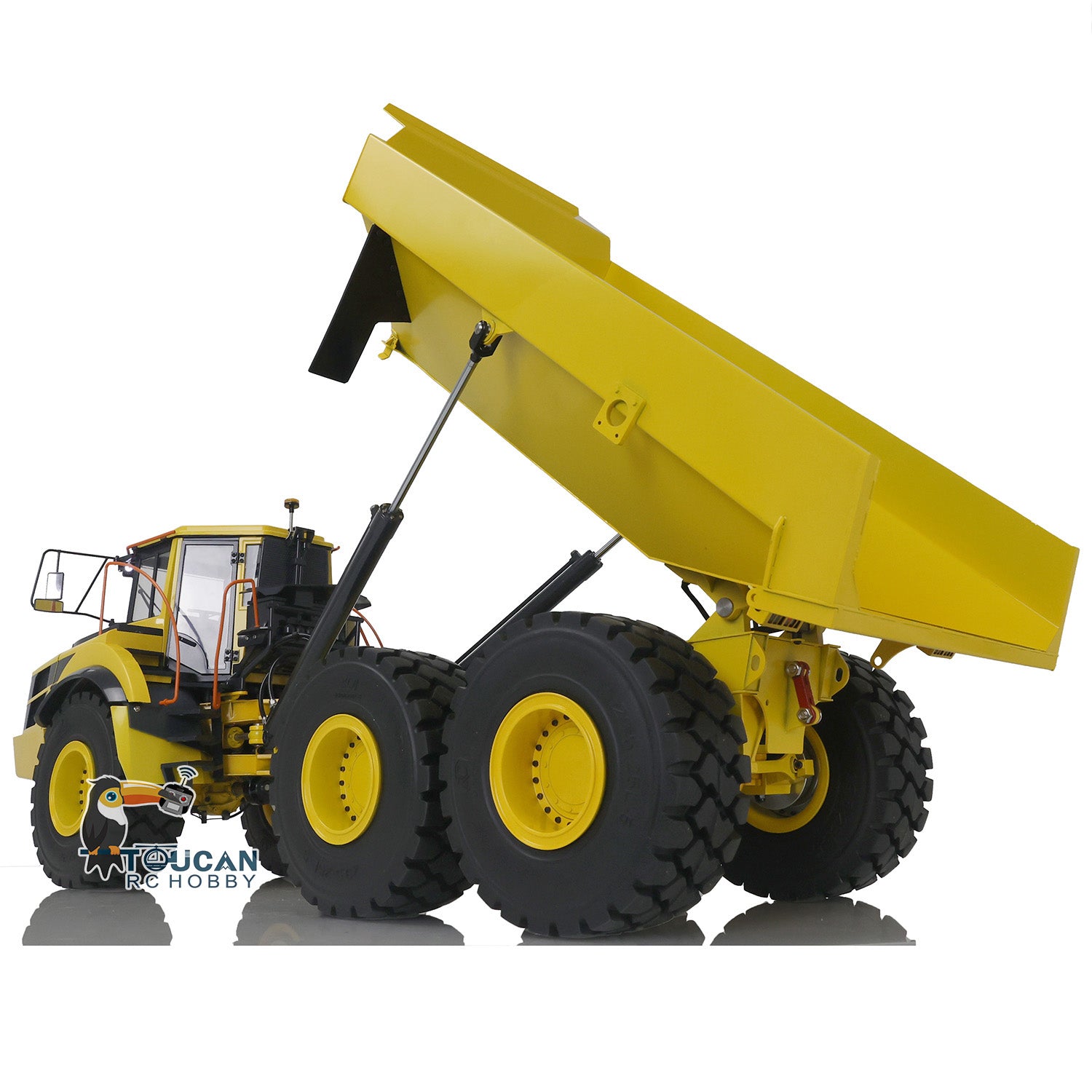

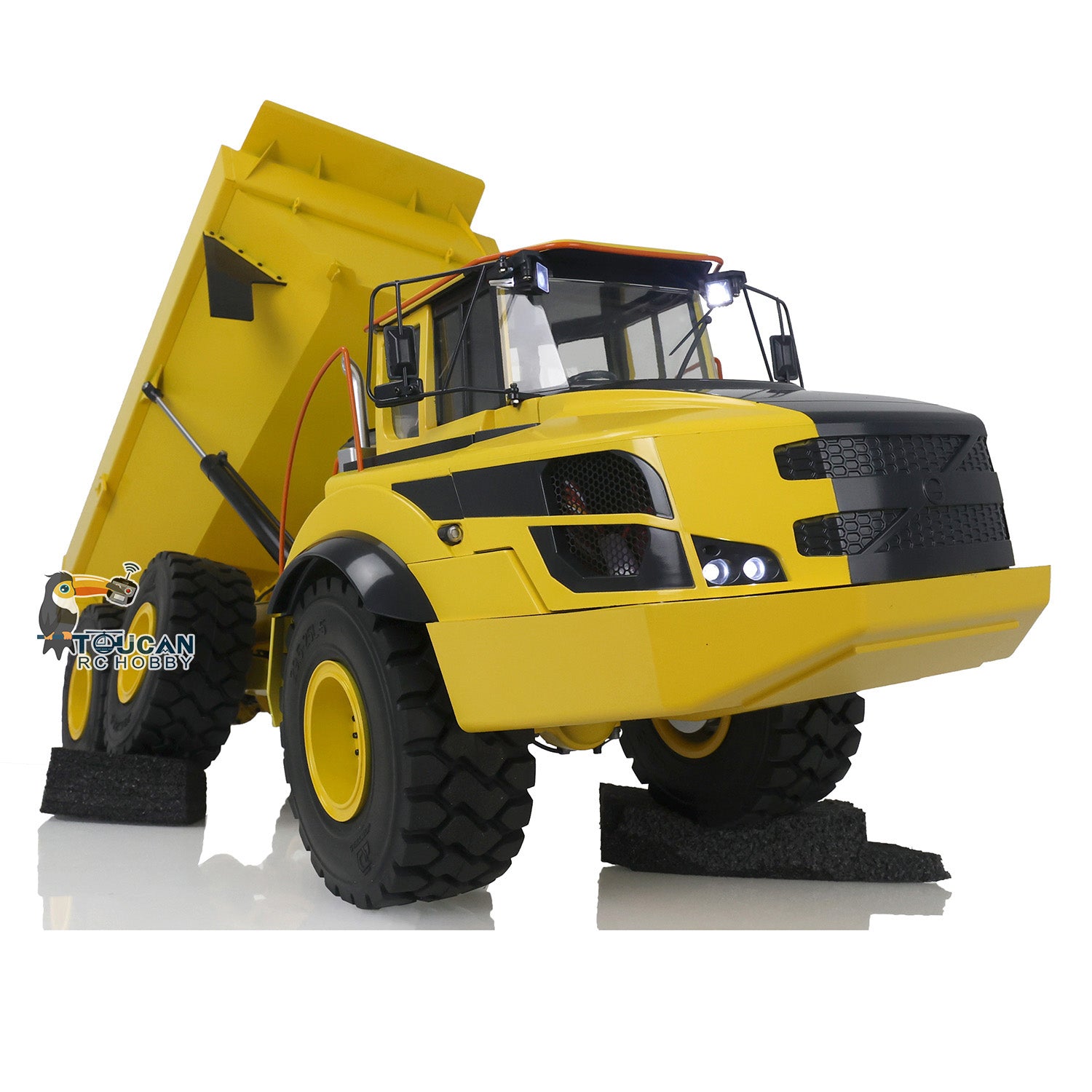

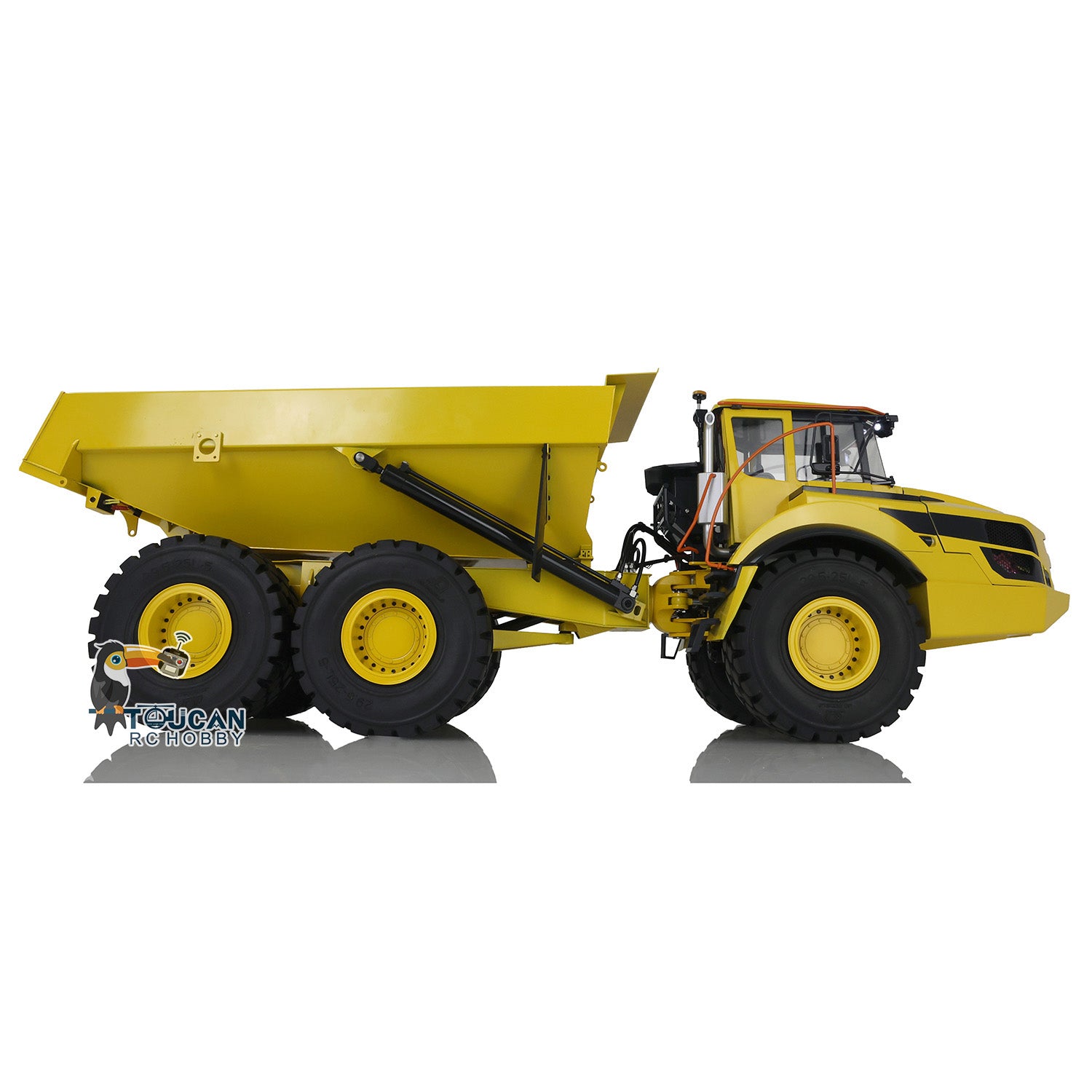

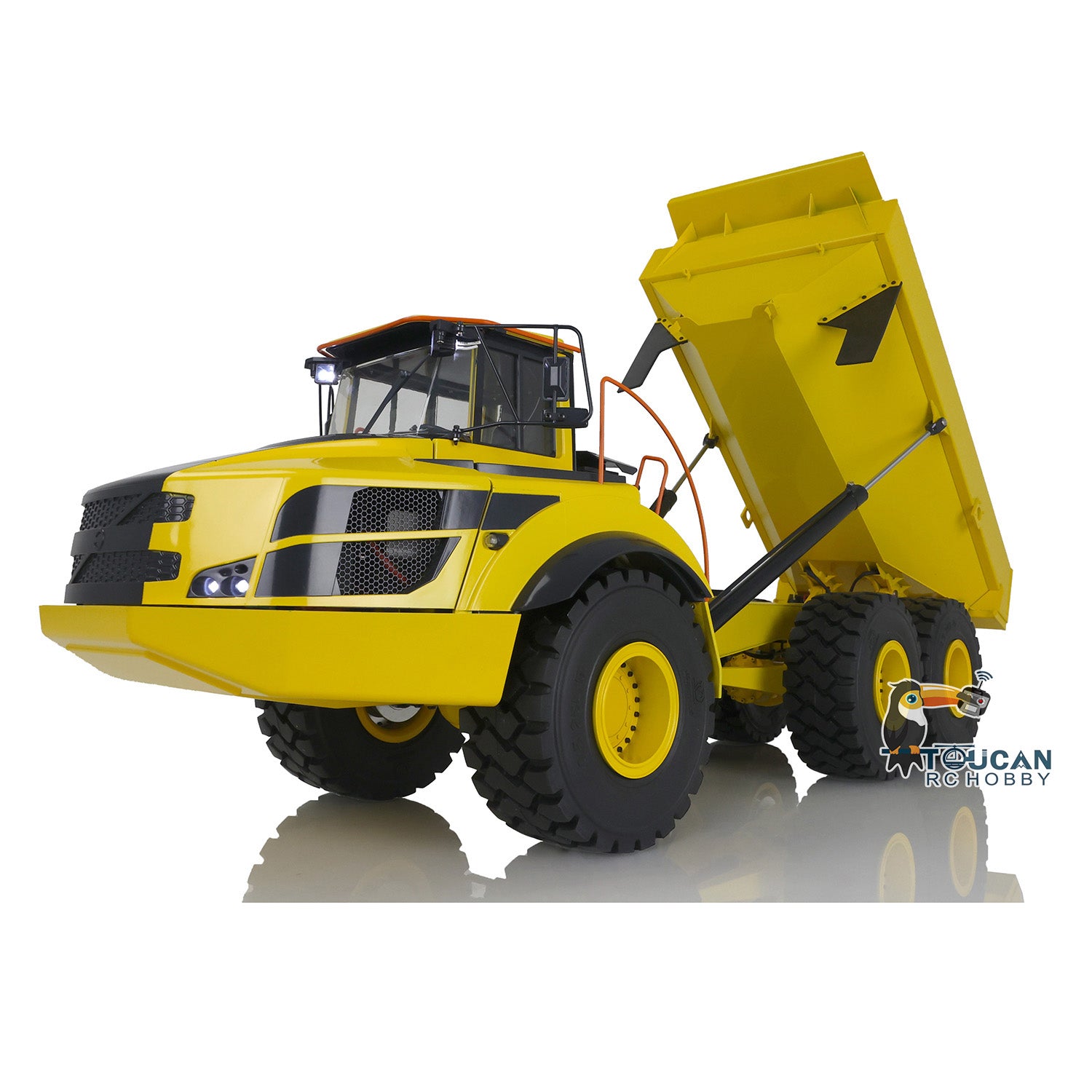

JDModel 166 Metal E450C 6X6 1/14 RC Hydraulic Equipment Remote Controlled Articulated Truck Dumper Lights Radio
Specification:
Brand: JDM Model
Item Condition: New, Assembled and Painted
Scale: 1/14
Material: Metal, Plastic
Size: 818x242.3x278MM
Net Weight: 12KG
Bucket Lift Capacity: 40KG

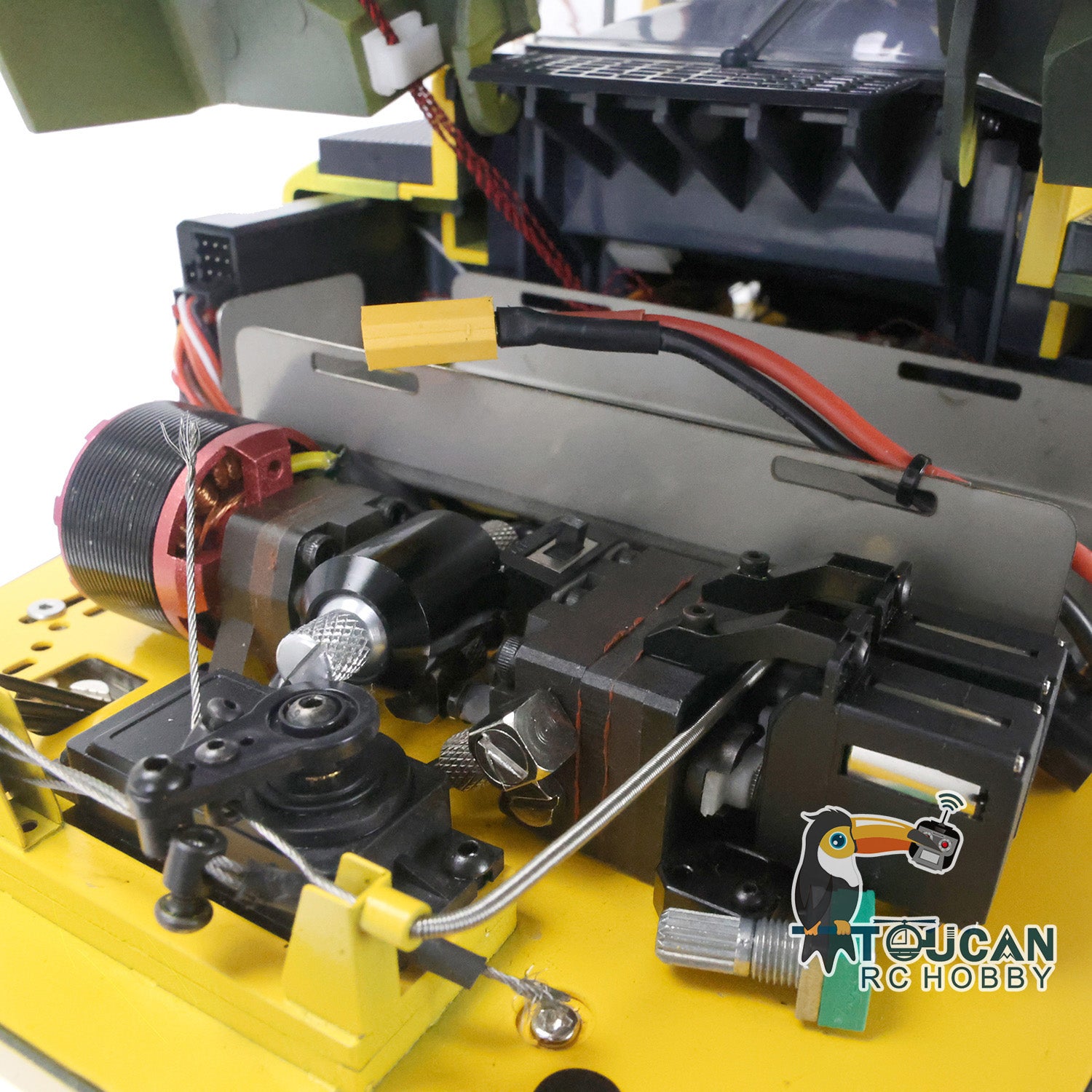

Pump: Flow: 0.8l/min, Rated Pressure: 3Mpa, Limit Pressure 5MPa
Valve: 2CH Metal Valve
Axles: Differential Lock Metal Axles
Recommended Battery: 3S, 11.1V, 135MMx43MMx30MM( Not Included)
ID: JDM-166-E450C-Y
The Package Includes:
1/14 Hydraulic Articulated Truck

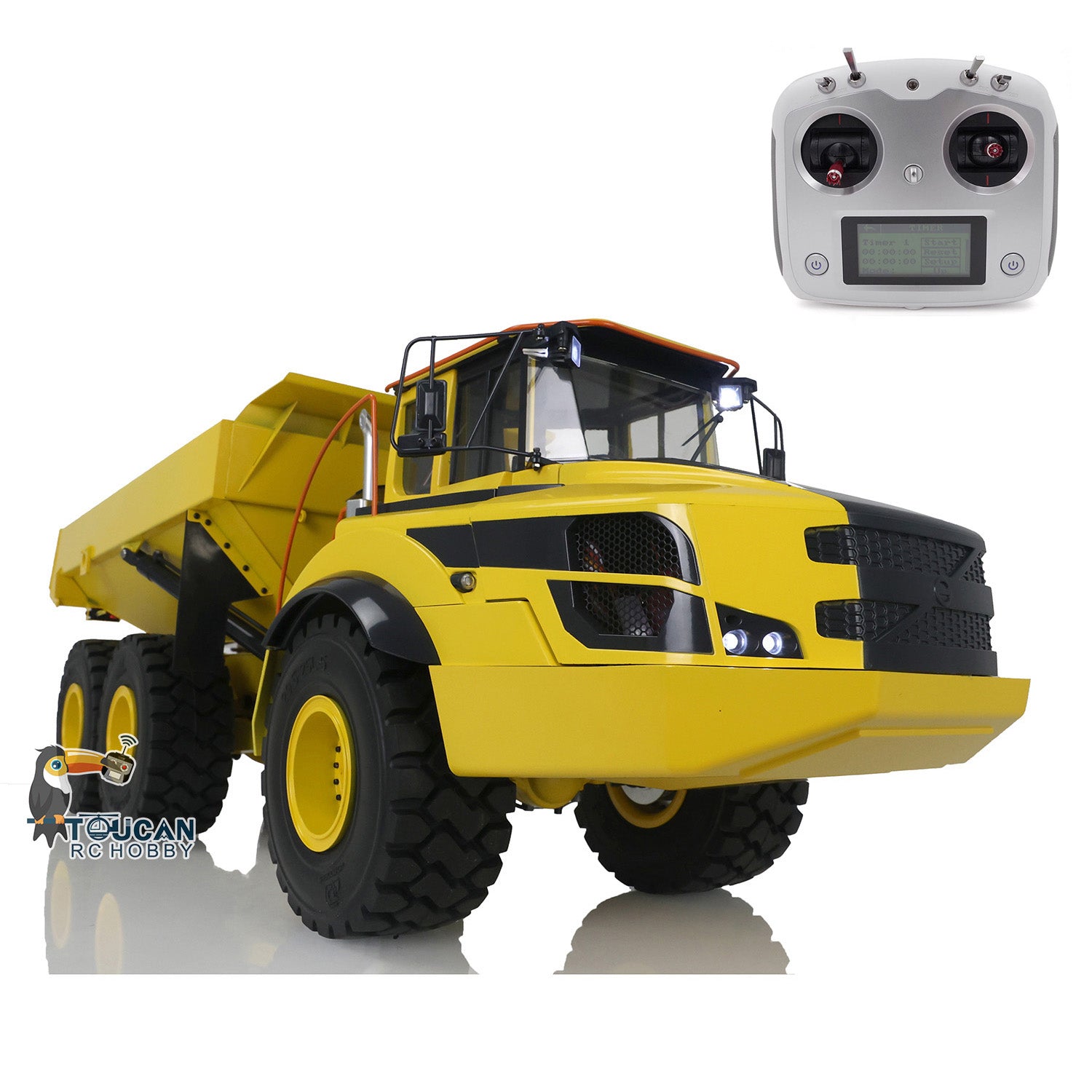

Flysky I6S Radio System
Light System
Sound System
Warning Light
The Package doesn't Includes:
11.1V Battery
Charger
Hydraulic Oil
Main Feature:
1, This is a 1/14 remote control hydraulic articulated truck that is almost assembled, you need to assemble the decorative parts such as mirrors, handrail railings and so on.
2, The rear of this articulated truck and the front of it can be rotated 360 degrees (but I do not recommend this, because rotating 360 degrees will affect the oil tubing), and it needs to be taken out in parallel with the end of the hand to prevent the front car head from rotating and breaking the truck.
3, Please move all silver lever of this remote controller up, and then start the remote controller, and then let the articulated truck connect to the 11.1V battery, wait for 5 seconds after you can hear the sound of ESC, when the sound stops, it means that you can drive the truck now.
4,Before use the hydraulic function, you must add hydraulic oil to the oil tank, please note that the hydraulic oil needs to be prepare by yourself, I recommend 32 or 46 hydraulic oil. After opening the hood you can see the tank plugging nozzle, you need to twist the plugging nozzle with a screwdriver, and then add hydraulic oil to this tank in 3 times: after the first injection of 30ML, open the oil pump and let the hydraulic oil flow to the hydraulic system tubing; Then inject 30ML, control the steering cylinder by remote control to rotate to left and right, repeat the operation 2-3 times, so that the hydraulic oil flows into the cylinder and discharges the air; on the last, inject 40ML hydraulic oil and control the bucket rise and fall by remote control, repeat the operation 2-3 times. It is proved that the oil has been filled and the hydraulic function can be used normally if the hydraulic cylinder operation is smooth.
5, CH6 is control warning light, CH8 is control light group, you can switch the light by move the lever, if you do not know how to operate, please contact me or watch the video I posted.
If you have any query or are not sure whether it is correct item that you want, pls feel free to ask me before purchase.
